Overview

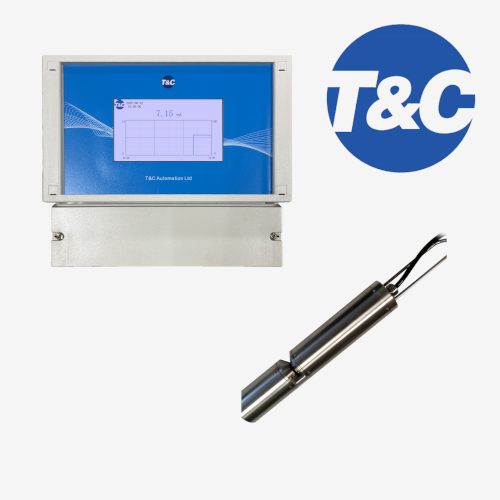

SMART series intelligent multi-parameter universal controller has high accuracy, its unique professional design can be applied in water, chemical, pharmaceutical, food and hygiene in the production process of the most extreme physical and chemical environments. SMART series intelligent multi-parameter universal controller has modular bus structure, highly scalable functionality, high reliability and comfortable operation.

The Spectral Absorption Coefficient (SAC) at 254 nm helps determine the Organic Content of a water sample, but also the COD, TOC and BOD parameters by applying the appropriate correlation coefficients.

Measurement principle

The sensor uses UV absorption at 254 nm to measure organic compounds dissolved in water. This absorbance is correlated with the concentration of TOC, COD and BOD to provide a high-performance sensor requiring no consumables. A reference measurement at 530 nm is used to compensate for the presence of particles in the sample that also absorb UV light and to establish the Turbidity parameter. The use of a state-of-the-art high-performance UV LED, combined with rigorous ignition management, offers an optimal variance of the signal.

Typical application

• Sewage treatment

• Environmental Engineering

• Municipal water supply

• Water source monitoring

• chemical engineering

• Electricity

• Biopharmaceutical

Controller features

• Quick and convenient

    The navigation menu contains 6 languages, which can be operated easily.

• Process safety

    4.3" or 7" large size color LCD touch screen, convenient and safe touch operation and debugging

    Large size screen with red flashing alarm, clearly visible from long distances and in dark areas

    Alarm immediately, safe the process

• Alarm event record

    Real-time data curve display

    Record function for up to 6000 alarms

• Expert calibration function

   Multi-point calibration function up to 9 point

• Powerful self-diagnosis function

    Built-in heartbeat monitoring function and watchdog

    Monitor the status of controllers and sensors, and promptly remind customers to take necessary maintenance

    High-standard hardware and software security and password protection

• Powerful control function

    High(low) limit control function

    Optional: Timer control(automatic cleaning) function

    Optional: analog PID controller

    Optional: PWM controller

• Flexible fieldbus communication functions for IOT4.0

    Optional fieldbus MODBUS, HART, Foundation Fieldbus FF, PROFIBUS PA, PROFIBUS DP, etc.

Product datasheet: TOC Analyzer , if you need more information, please contact us at sales@trust-control.com.cn .
